Vtech Audio Follow Baby

VTech Baby Monitor Safe & Sound Audio Baby is an audio monitor enhanced range, perfect for controlling your baby from another room.
With communication without interference DECT, you will not miss any details. Digital transmission ensures uninterrupted recording. The parent unit has a belt clip, so you can use it even if your hands busy. Their sound indicator 5 levels, is very sensitive and detects subtle noises, for peace of mind.

This baby monitor has the following features:

– DECT signal.
– 120 channels.
– including 1 parental unit and portable.
– Up to 450 meters range.
– Out of range indicator.
– Power saving mode.
– Low battery indicator.

Security
For safety always use the cables provided. (The manufacturer is not liable for any failure caused by not using those provided on the packaging)
To reduce the risk of fire or electric shock, exposure to rain or moisture.
Plug it into an electrical outlet easily accessible, should immediately disconnect notice any abnormality of the current.
NO removing the cover, to prevent shock hazard.
DO NOT use if damaged cables, adapters, etc.
Do not touch plugs to network with conductive materials.
Only qualified personnel review.

warnings
Misuse can damage the battery.
Do not disassemble or throw fire.

The package includes
– DM1111 parental Unit (PU)
– The DM1111 Baby Unit (BU)
– 2 chargers for both units.
– Rechargeable batteries for the parent unit.

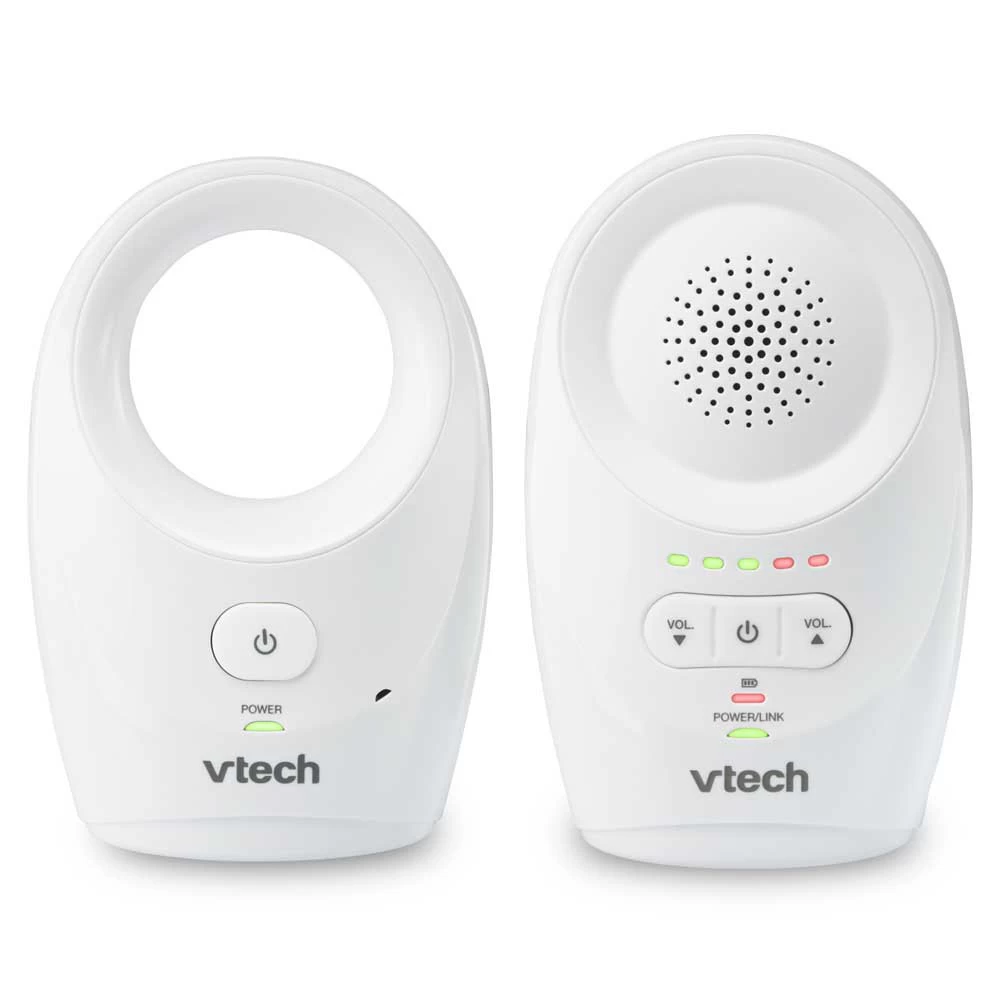

Characteristics of the units
Baby unit
1 – On / Off
Press and hold On / Off to turn on and off.
2 – Microphone
3 – Power Light
4 – Power Connector

parental unit
1 – Speaker
2 – On / Off
Press and hold On / Off to turn on and off.
3 – Volume Up
Press to increase the volume of the speaker
4 – Power light and free
5 – Power Connector
6 – visual indicator sound
Sound level detected by the baby unit
One to three green lights indicate a moderate volume detected by the baby unit.
Additional red lights indicate a higher sound level detected by the baby unit.

Volume level of the speaker
A three green lights indicate Level 1 to Level 3 of the configuration of the speaker volume.
Additional red lights indicate Level 4 Level 5 configuring the volume of the speaker.
7 – Volume down
Tap to decrease the volume of the speaker
Press repeatedly until the volume reaches the minimum and silence the parental unit.
8 – Low Battery Light Red light flashes when the battery is running low.
9 – Belt clip
10 – Battery compartment

Functioning:

– Connecting both units by the cables supplied to the current place or rechargeable batteries. Pressing the On / Off button to turn on both units. The power LED will begin to look. Place the baby unit in your room at a distance of at least 1 meter on it. Parents can hear your baby´s voice through the receiver. Adjust the volume. LED indicators indicate the volume level of sound emitted by the baby.

Some points to remember:

– Avoid placing it near heating appliances and devices that generate electrical noise. Wipe with a soft cloth.
– Do not immerse any unit in water and do not clean under the tap. Make sure before the baby unit and parent unit are dry to reconnect to the grid.
– Use only rechargeable batteries supplied. If you use other batteries, the performance of the baby monitor may vary. Do not mix old and new batteries or alkaline, standard or rechargeable.
– Cables are recommended for use parental unit, in case you want to use to transport the batteries. When not using the baby monitor, remove the 2 rechargeable batteries from the parent unit.
– The operating range of the baby monitor is up to 450 meters outdoors and 50 meters indoors. The actual operating range may vary depending on environmental conditions and other interferences such as walls, doors and other obstructions. When the parent unit is out of
range, it beeps three times every 30 seconds.
– Place the parent unit more than 2 meters from the baby unit.

Technical specifications:

– This product is designed for use in Europe. This equipment complies with the essential requirements as to the EU standard 2014/53 / EU on radio systems and telecommunications equipment.
– Frequency of units 1881 – 1897 MHz
– Number of Channels – 10
– Power requirements – Output: DC 6V @ 450mA
– Parental unit battery – AAA 1.2V 400mAh Ni-MH
